Debug Move

Move Trace Debugger

Prerequisites

• vscode
  https://code.visualstudio.com/download

• Move Trace Debugger
  https://marketplace.visualstudio.com/items?itemName=mysten.move-trace-debug

Start Debug

• in deepmove cli, type debug <module> <func> to generate trace file as example, you can type the following commands

debug wasm_test use_const

• in vscode open the move source code file

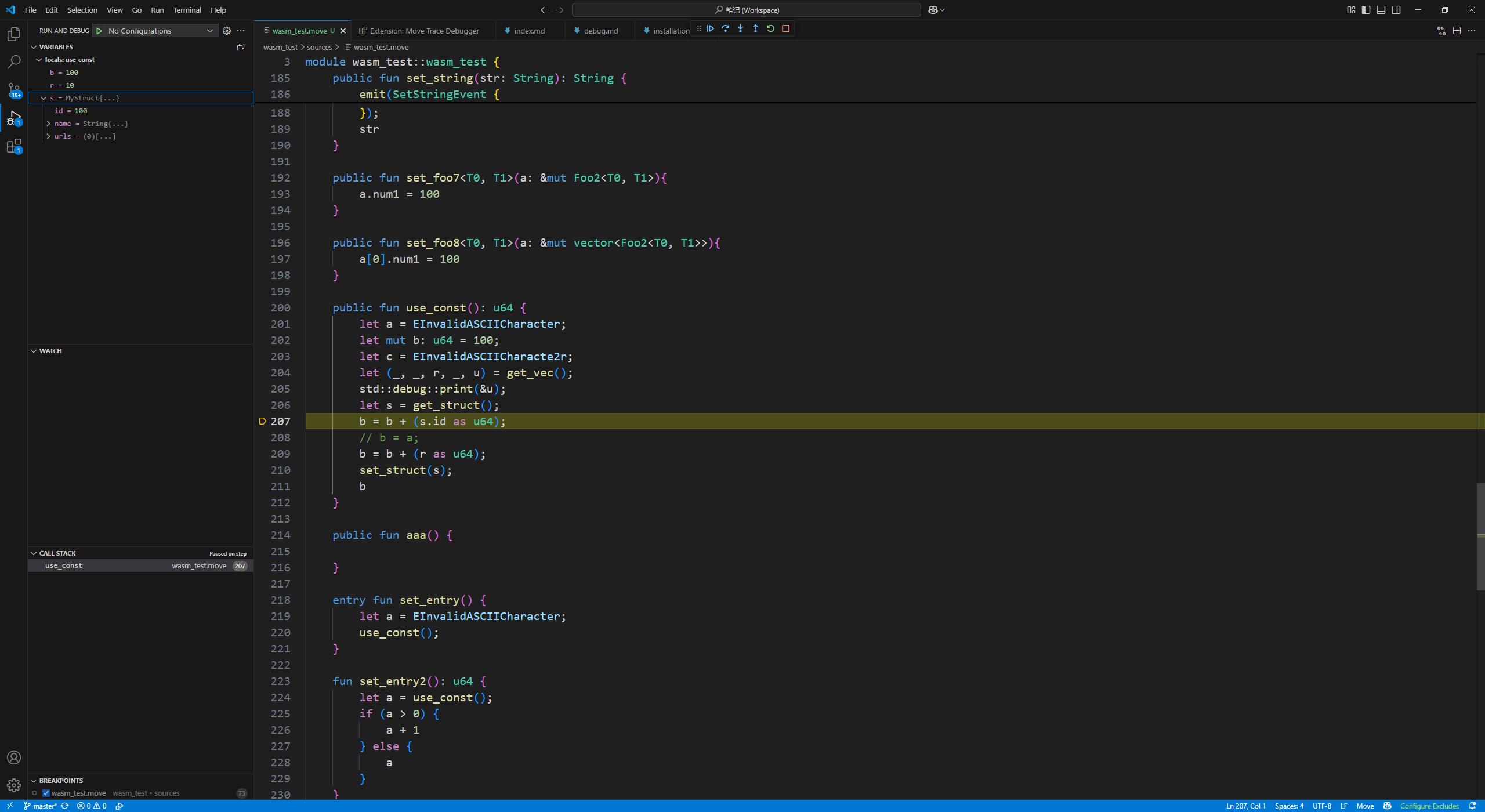

• Select Run -> Start Debugging from the menu.

Move Source Mapping

when your move contracts abort with error codes, in this move example, will abort with assert!, you may get the following error messages

VMError with status ABORTED with sub status 1 at location Module ModuleId { address: 0000000000000000000000000000000000000000000000000000000000000000, name: Identifier("wasm_test") } and message 0x0000000000000000000000000000000000000000000000000000000000000000::wasm_test::get_vec at offset 19 at code offset 19 in function definition 4

as we can see, it is not quite easy to locate the wrong code position

will deepmove move vm runtime, you will get the extra message with source mapping to the original wrong code position

 → VMError with status ABORTED with sub status 1 at location Module ModuleId { address: 0000000000000000000000000000000000000000000000000000000000000000, name: Identifier("wasm_test") } and message 0x0000000000000000000000000000000000000000000000000000000000000000::wasm_test::get_vec at offset 19 at code offset 19 in function definition 4

move code error at:
0x0::wasm_test:59

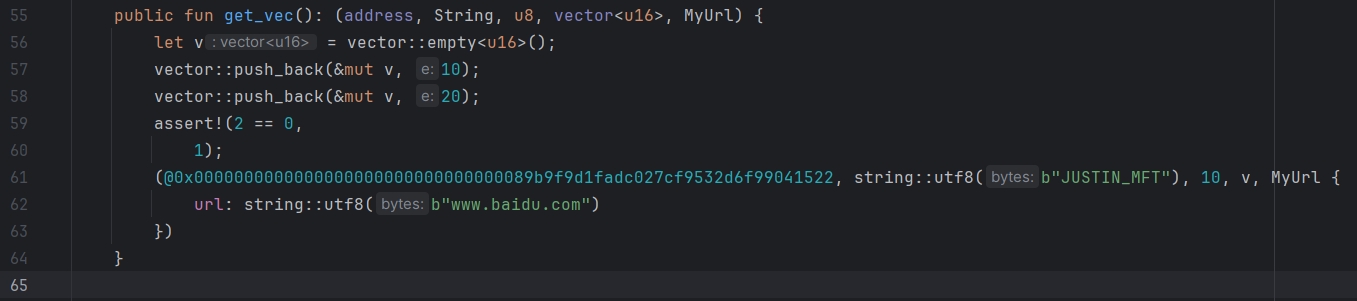

59|    assert

59 shows the source code line number to your move codes

References

https://docs.sui.io/references/ide/debugger
